Power Macintosh 7200/Apple Workgroup Server 7250

Introduced: August 1995
Terminated: March 1996

Description

The Power Macintosh 7200 ran the PowerPC 601 processor at 75 or 90Mhz.  It had a hard drive of between 500MB to 1.2GB and came with a 4x or 8x CD-ROM and 1.44 floppy drive.  It also had 3 PCI expansion slots.

History

The most noteworthy thing about the Power Macintosh 7200 was the fact that it was an entry-level, budget conscious computer with PCI slots.

When bundled with server software, it was sold as the Apple Workgroup Server 7250.

Photos

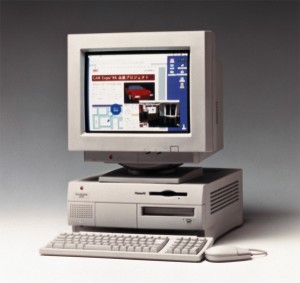

Power Macintosh 7200/Apple Workgroup Server 7250

Specifications

Processor: PowerPC 601
Processor Speed: 75, 90, or 120 MHz
Cache: 32 KB L1, Optional 256 KB, 512 KB, or 1 MB L2
System Bus: 37.5, 45, or 40 MHz
Hard Drive: 500 MB - 1.2 GB
Media: 4x or 8x CD-ROM, 1.44 MB floppy
Weight and Dimensions (US): 22 lbs., 6.15” H x 14.37” W x 16.93” D
Weight and Dimensions (Metric): 10 kg, 15.6 cm H x 36.5 cm W x 43 cm D
Original Mac OS: System 7.5.2 (System Enabler 701 v1.1)
Maximum Mac OS: Mac OS 9.1
Firmware: Open Firmware with Macintosh ROM
Logicboard RAM: None
Maximum RAM: 512 MB
Type of RAM Slots: 4 - 168 Pin FPM DIMMs
Minimum RAM Speed: 70 ns
Interleaving Support: No
Graphics Card: None
Graphics Memory: 1 - 4 MB VRAM
Built-in Display: None
Display Connection: DB-15
Expansion Slots: 3 - PCI
Hard Drive Bus: SCSI
Backup Battery: 3.6 V Lithium
Max Watts: 150 W
Line Voltage: 100-240 V
Ethernet: AAUI-15, 10BASE-T
Modem: None
ADB: 1
Serial: 2
SCSI: 1 - DB-25
USB: None
FireWire: None
Audio In: 1 - 3.5-mm analog input jack
Audio Out: 1 - 3.5-mm analog output jack, 1 - Built-in speaker

Timeline

Introduced in August 1995, the Power Macintosh 7200/Apple Workgroup Server 7250 was discontinued in March of 1996.

Videos

Comments

  • I really like to read information like this. It’s so interesting and enjoyable to read. The history of Apple computers is so amazing. Anyway, the Power Macintosh 7200 was a successor to the Power Macintosh 7100 which it represents the low end of the “second wave” of Power Macs, which replaced the NuBus of the Power Macintosh x1xx models with PCI. GAR Labs
