Apple Cinema Display (20” DVI, 23” DVI and 30"DVI)

Introduced: June 2004
Terminated: August 2006

Description

Housed in sleek new aluminum cases, the Apple Cinema Display (20” DVI, 23” DVI and 30"DVI) had DVI connection and could be used with Macs or PCs.  There were two USB 2.0 ports and two FireWire 400 ports.

History

The Apple Cinema Display (20” DVI, 23” DVI and 30"DVI) marked a major revision of the look of the Cinema Display line. The new aluminum casing was sleek and matched the aluminum cases now being used throughout the professional Mac line.

Photos

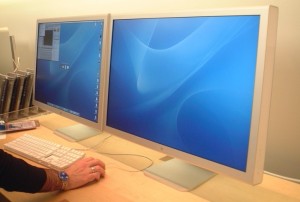

Apple Cinema Display (20” DVI, 23” DVI and 30

Specifications

Type: LCD
Size: 20”; 23”; 30”
Viewable Area: 20”; 23”; 29.7”
Connection: DVI
System Requirements: Mac with any NVIDIA or ATI Radeon 7500 (or better) graphics card and Mac OS X v10.2.8 or later. Windows PC with DVI ports that support full single link digital bandwidth.
Integrated Audio: None
Ports: 2 - USB 2.0, 2 - FireWire 400
Power: 65 W
Mounting: VESA FDMI (MIS-D, 100, C) compliant
Weight and Dimensions (US): 14.5 lbs., 16.1” H x 18.5” W x 6.8” D
Weight and Dimensions (Metric): 6.6 kg, 41 cm H x 47.1 cm W x 17.4 cm D
Colors: 16.7 million
Viewing angle: 170° horizontal; 170° vertical
Brightness: 250 cd/m2
Contrast ratio: 400:1
Response time: 16 ms
Pixel pitch: 0.258 mm
DPI:—
Resolutions: 1024 x 640, 1280 x 800, and 1680 x 1050

Timeline

Introduced in June 2004 the Apple Cinema Display (20” DVI, 23” DVI and 30"DVI) was discontinued in August 2006.
